1
Voltage Gate
PASSDevice output type must match generator output.
120V required -> 120V available
Yes, the Explorer 2000 Plus can run a Shop Vac
Yes - Explorer 2000 Plus has enough running and surge power for the Shop Vac (Wet/Dry, 5-6 HP Peak). Target ~1601W running / 4803W surge; the generator provides 3000W / 6000W.
Power Margin Analysis
3000W / 6000W Capacity Running 1399W headroom
1601W required
Surge 1197W headroom
4803W required
Decision Gate Waterfall
Same decision gates as the engine: voltage, running, surge. Runtime is shown as operational context.
2
Running Gate
PASSContinuous draw with safety buffer applied.
1,601W required -> 3,000W available (1,399W headroom)
Required 1,601W required
Available 3,000W
3
Surge Gate
PASSStartup peak with safety buffer applied.
4,803W required -> 6,000W available (1,197W headroom)
Required 4,803W required
Available 6,000W
4
Runtime Insight
INFORuntime context only. It does not change the electrical compatibility verdict.
Continuous estimate: 1.0h
Device profile reference: up to 1h per day.
Power bars show required versus available output for each gate.
View full compatibility reportDecision Snapshot
Quick compatibility, required headroom, and model-specific context at a glance.
⚡
3000W
Running Power
🔋
2042Wh
Capacity
⏱️
~1h
Est. Runtime
☀️
1400W
Solar Input
Quick Compatibility Check
- 1 Running headroom: target 1601W; generator provides 3000W.
- 2 Surge headroom: target 4803W; generator provides 6000W.
- 3 Tip: leave headroom for startup spikes and warm conditions.
Model-Specific Results
3 of 3 models are SAFE or TIGHT. Most demanding model: Shop-Vac SVX2 (12-Gal, 5.5 HP Peak) (4,176W surge).
| Model | Running | Surge | Verdict | Runtime | Source |
|---|---|---|---|---|---|
| DeWalt DXV10P (10-Gal, 5.5 HP, 2-Stage Quiet) | 1,200W | 3,600W | Safe | ~1.2h | Engineering Est. |
Show expert analysisTechnical: **Running load:** 1200W from OEM nameplate (10A × 120V). **Estimated startup surge:** 3600W at 3x running (motor-load multiplier — no OEM starting watts published). **Voltage:** 120V AC. 2-stage motor, 90 CFM airflow, 73 dB noise rating — quietest in this set. Field note: The DXV10P is the most power-station-friendly shop vac in this set. At 1200W running and an estimated 3600W surge, it works with most power stations rated 2000W+ with adequate surge capacity. The 2-stage motor runs quieter (73 dB) and may have lower actual inrush than single-stage models, though no OEM data confirms this. Can a portable power station run the DeWalt DXV10P? Only if your power source can supply at least 1200W continuous and approximately 3600W surge at 120V. The motor startup surge is the main challenge, not the running watts. | |||||
| Vacmaster Beast VFB511B (5-Gal, 6 HP Peak, Compact) | 1,320W | 3,960W | Safe | ~1.1h | Engineering Est. |
Show expert analysisTechnical: **Running load:** 1320W from OEM specs (11A × 120V). **Estimated startup surge:** 3960W at 3x running (motor-load multiplier — no OEM starting watts published). **Voltage:** 120V AC. Single-stage motor, 102 CFM airflow, 320 Air Watts, 82 in. water lift. Field note: The Beast packs the most suction power per pound in this set — 102 CFM from a 12 lb unit. At 1320W running it draws 10% more than the DeWalt but delivers 13% more airflow. The compact 5-gallon tank makes it portable but limits continuous use on large jobs. Is the Vacmaster Beast harder to run on a power station than the DeWalt? Slightly — 1320W versus 1200W running, with an estimated 3960W versus 3600W surge. Both need a power station with at least 2000W continuous and 4000W+ surge for reliable startup. | |||||
| Shop-Vac SVX2 (12-Gal, 5.5 HP Peak) | 1,392W | 4,176W | Safe | ~1.0h | Engineering Est. |
Show expert analysisTechnical: **Running load:** 1392W from OEM specs (11.6A × 120V). **Estimated startup surge:** 4176W at 3x running (motor-load multiplier — no OEM starting watts published). **Voltage:** 120V AC. SVX2 motor, 12-gallon tank — the highest-draw unit in this set. Field note: The SVX2 draws the most power in this set at 11.6A. Its estimated 4176W startup surge puts it beyond most mid-range power stations. If you need a shop vac specifically for portable power use, the 10A DeWalt is a safer choice. The SVX2 is best paired with stations rated 2500W+ continuous with 5000W surge. Why does the Shop-Vac draw more than the 6 HP Vacmaster? Peak HP is a marketing metric, not an electrical measurement. The SVX2 at 11.6A draws more real power than the 6 HP Beast at 11A. Always check nameplate amps, not HP ratings, for power station sizing. | |||||
How This Pairing Performs Across Our Database
This unit ranks #4 of 12 compatible generators for this device by buffered margin (Balanced class).
How Shop Vac (Wet/Dry, 5-6 HP Peak) Performs Across 33 Tested Generators
12 of 33 generators are SAFE+TIGHT for Shop Vac (Wet/Dry, 5-6 HP Peak).
12
Safe+Tight
Safe 9 (27%)
Tight 3 (9%)
Fail 21 (64%)
Power Comparison: Jackery Explorer 2000 Plus vs Top Alternatives for Shop Vac (Wet/Dry, 5-6 HP Peak)
Jackery Explorer 2000 Plus Safe Balanced
Current unit
Running 3,000W
Surge 6,000W
Fit class uses buffered needs (running and surge) for this device.
Specs & Surge Analysis
Power Tools

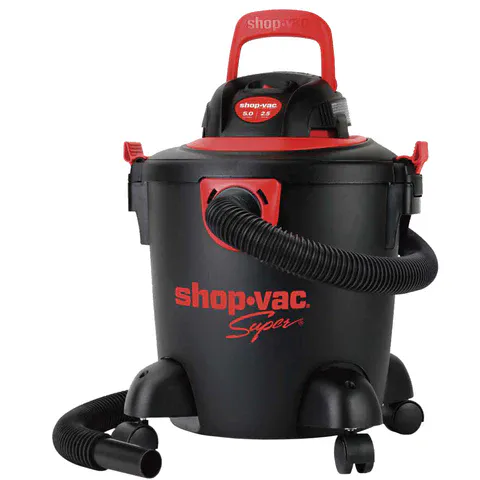

Shop Vac (Wet/Dry, 5-6 HP Peak)
Workshop Cleanup
Select Your Model:
1392W
Running
4176W
Surge
120V
Required
True Surge™ Analysis
Safety Buffer: +15% Running Power Usage 53% Utilization
1601W required 3000W Capacity
1399W headroom
Surge/Startup Peak 80% Utilization
4803W required 6000W Capacity
1197W headroom
Voltage Match 120V ↔ 120V ✓
Compare Similar Units
Free Tools
Station Tools
Generator Insights
The 6000W surge rating can handle typical compressor startup events found in residential HVAC systems, well pumps, and refrigeration equipment. The 3000W running load can support simultaneous operation of multiple essential circuits. Actual performance depends on connected load power factor and startup characteristics.
This unit uses LFP chemistry, known for stable thermal behavior in lithium battery systems. The 2042Wh capacity provides extended runtime for essential circuits. Source: Jackery Explorer 2000 Plus Manual Specifications (manufacturer documentation). No safety guarantees are implied beyond the published specifications.
Extend Runtime with Solar
Keep your Shop Vac (Wet/Dry, 5-6 HP Peak) running with solar • MPPT: 11– 60V • Max: 1400W
Official Jackery
200W Panel
1 Hour Sun =
+0.1h per sun hour
Plug & Play
Full in ~14.6h
Smart Value EcoFlow
400W Panel
1 Hour Sun =
+0.2h per sun hour
MC4 -> DC8020
Full in ~7.3h Adapter required: MC4 -> DC8020.
Smart Value Bluetti
350W Panel
1 Hour Sun =
+0.2h per sun hour
MC4 -> DC8020
Full in ~8.3h Adapter required: MC4 -> DC8020.
Technical Analysis
Spec-Based • No GuaranteesTechnical Breakdown
Running range: 1200W (10A) to 1392W (11.6A) depending on motor size. Estimated surge range: 3600W to 4176W at 3x running (motor-load multiplier — no shop vac manufacturer publishes starting watts). Voltage: 120V AC for all residential models.
Expected Behavior
Estimated runtime: ~1h. Shop vacs draw near-maximum rated power continuously while running. Unlike power tools that cycle between cuts, a shop vac runs steady until you release the trigger or switch. At 1 hour daily use, energy consumption ranges from 1200 to 1392 Wh.
Field Note
Peak HP is meaningless for power station sizing — a '6 HP' vac may draw less amps than a '5.5 HP' model. Always check the nameplate amperage. Motor startup surge is the primary compatibility concern: a shop vac that draws 1200W running may need 3600W briefly at startup. Size for surge capacity first.
Frequently Asked Questions
Can the Jackery Explorer 2000 Plus power a Shop Vac?
Yes. The Jackery Explorer 2000 Plus provides 3000W running / 6000W surge. The Shop Vac (Wet/Dry, 5-6 HP Peak) needs 1601W / 4803W (including 15% buffer). That leaves 1399W of running headroom and 1197W of surge margin.
How long will the Explorer 2000 Plus run a Shop Vac?
Approximately 1.0 hours, based on the Shop Vac (Wet/Dry, 5-6 HP Peak)'s 1392W draw and the Explorer 2000 Plus's 2042Wh capacity (70% usable after real-world losses).
What Else Can You Run?
With 955W allocated to the Shop Vac (Wet/Dry, 5-6 HP Peak), the Explorer 2000 Plus still has ~53W of margin. These devices could run simultaneously:
💡
LED Lamp
10W
🔥
Space Heater (Eco)
750W
🌀
Box Fan (Medium)
60W
📺
55' LED TV
80W
🩺
CPAP (No Humidifier)
40W
📡
Wifi Router
15W
Power Tip: To get the most out of your Explorer 2000 Plus, keep it in a well-ventilated area. Extreme temperatures can slightly reduce the efficiency of the LFP/NMC cells.
Compare all 33 generators for the Shop Vac (Wet/Dry, 5-6 HP Peak)
Ranked by budget, runtime, and overall compatibility.
Technical Sourcing & Verification
ID: jackery-explorer-2000-plus-shop-vac-5hp 🏛️ Device Data Source
Engineering Est. Safety Factor Applied
Derived from variant list (max of variants). Running worst case = Shop-Vac SVX2 (1392W at 11.6A). Surge worst case = Shop-Vac SVX2 (4176W). Surge estimated using 3x motor-load multiplier policy (no OEM starting watts published for any shop vac in this class).
⚡ Generator Specs Source
OEM Verified
Jackery Explorer 2000 Plus Manual Specifications
Methodology informed by US Department of Energy (DOE) & EIA references where applicable.
